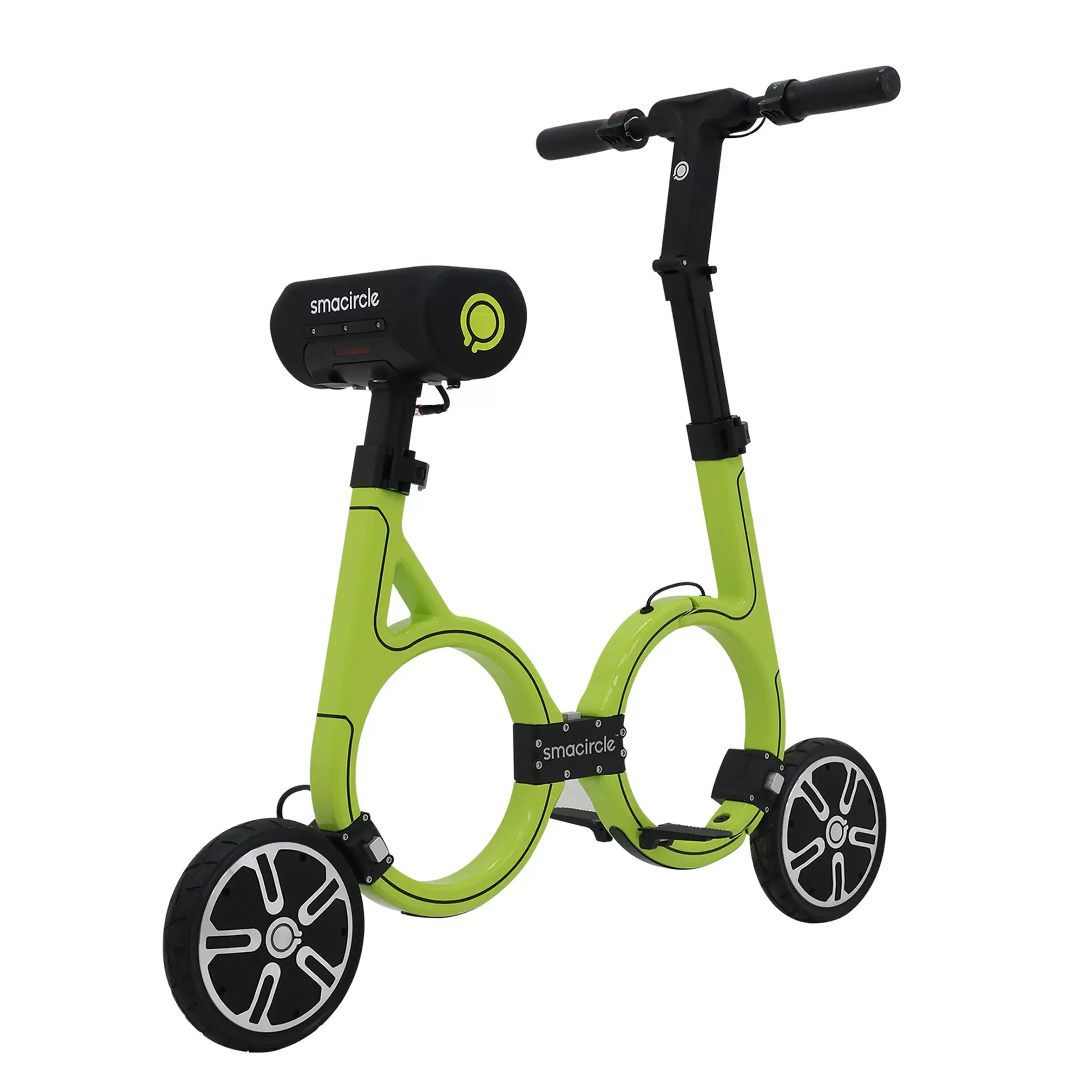

Portable Electric Bike S1 Green Tailored Version SMACIRCLE

More Info:

Your Kit includes:

• Smacircle
• Lithium-ion Battery
• Charger EU
• Quick Start Guide
• User Manual

Certificate and Safety

Your safety is our highest priority, Smacircle has acquired all necessary certificates to ensures the workmanship and driving safety,

including

• UL2271and UL2272 certificates issued by SGS
• US Federal Battery/Charging Efficiency Test,
• California Energy Commission BC Test
• CE, FCC, CB, and EMC issued by BV

Overview

• Smacircle holds high requirements on product quality and maintains strict reliability test standards.
• Each process meets the international standards, such as vibration test: 330 times per minute with a total of 150,000 vibrations under the 220.46 Ibs (100kg) capacity per S1, which shows Smacircle S1 has super high quality.
• From the frame to screws, Smacircle S1 has over 200 components, and all of them customized with the highest quality. Additionally, we take the most upper technique of this line in every aspect. For example, the high precision CNC technology ensures that every axis of the frame is tolerant of every movement. The temperature control of battery and motor protect Smacircle S1 all the time, sensitive electric brake protects the rider at high speed.
• Precise tolerance control and strict requirement make each unit keep the same high quality. For example, the steering part, it could not be either too loose or too tight, it will be very flexible and hard to control if it is too loose, and it will be hard to steer if it is too tight. And the folding mechanisms, it also requires strict tolerance, it will be not safe if it is too loose, but it will be hard to unfold and fold for people if it is too tight. The connector part of the rear frame and front frame, and the wheel holder all need high standard quality to make them tolerant. Complicated inside folding structure leads to clean and convenient folding and unfolding operation.

Features

 Carbon fiber made

• 20km/h range
• 3,6m/s top speed
• A 12° incline
• 20cm solid tire
• Rechargable lithium battery
• 3.5 hours charging time
• Smacircle App
• 2 Operation modes: Normal mode and Sport mode
• CES 2020 Innovation Awards Honoree

Specs:

Body Material

• Carbon Fiber

Size

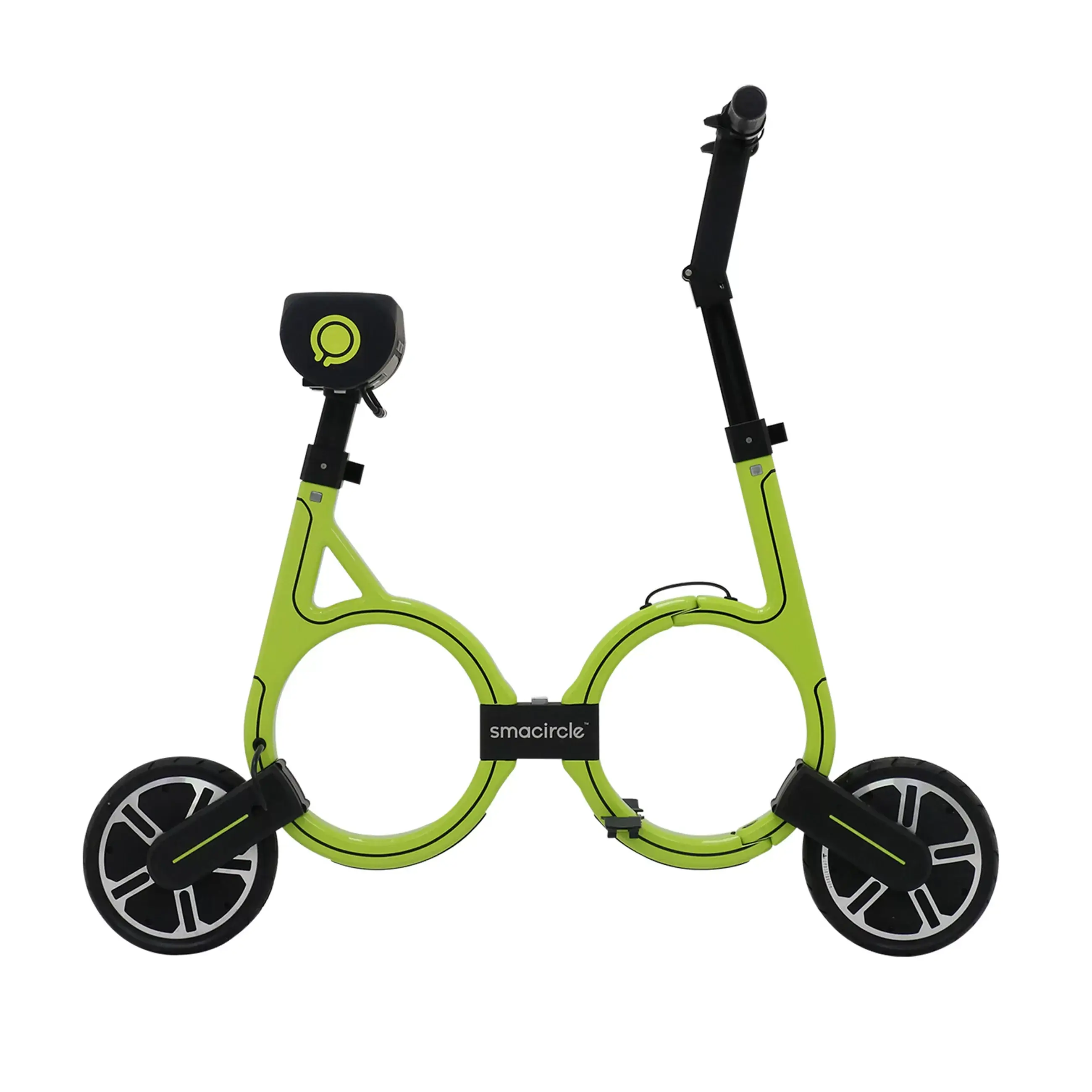

• Unfolded Size: 95 x 86 x 47 cm (37.40 x 33.85 x 18.50 in)

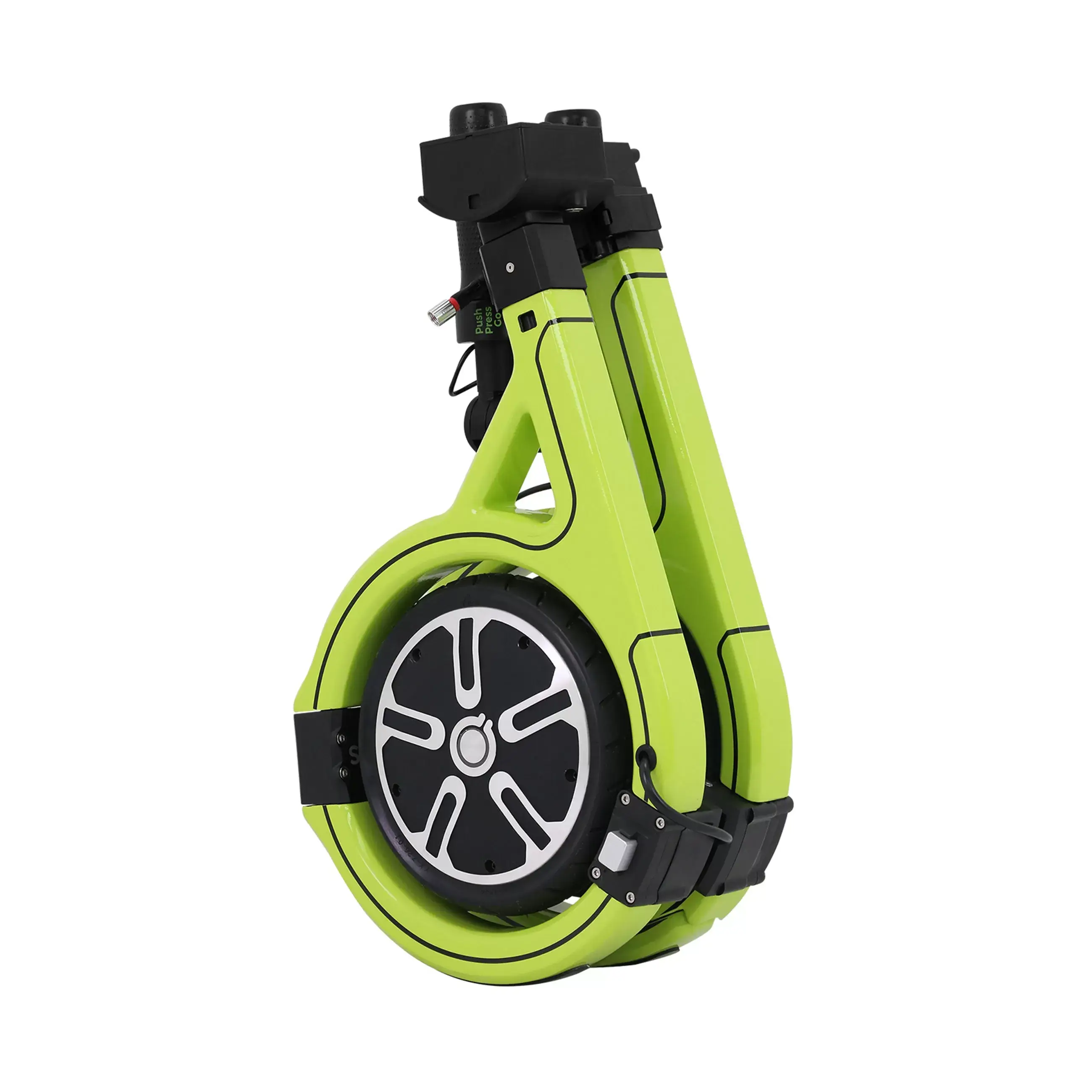

• Folded Size: 29 x 53 x 20 cm (11.41 x 20.86 x 7.87 in)

Material

• Maximum Load: 220.46 lbs (100 kg)
• Maximum Speed: 20 km/h (12.43 mi/h)
• Mileage Range: 17 - 20 km (10.56 - 12.43 mi)
• Incline: Approx. 12°
• Tire: 20cm Solid Tire

Battery

• Battery Type: Rechargeable Lithium Battery
• Battery Capacity: 5.5 AH, 200.8Wh
• Voltage: 36.5 V
• BMS: Overheating, Short; Circuit, Overcurrent and Overcharge Protection

Motor

• Motor Power: 250 W
• Voltage: 36 V

Charger

• Rated Input Voltage: 100-240 VAC 50/60 Hz
• Output Voltage: DC42 V
• Charging Time: 3.5 hours
• USB Output Voltage: 5 V
• USB Output Current: 1 A

Modes

Operation Modes:

• NORMAL Mode: (Max. 15 km/h, 9 mph)
• SPORT Mode: (Max. 20 km/h, 12.43 mph)

App

• Smacircle App: iOS and Android

Certificate

• Certificate: UL2271,UL2272 by SGS US Federal Battery/Charging; Efficiency Test, Commission BC Test, CE, FCC, CB, EMC by BV
